组装机配置
# 组装机配置
- 参考
- 笔记本直接看这个人
- 夏蒙乾 (opens new window)
- 但是最近（2023-02-09）还是不推荐买，能增加内存、ssd 的机型要么过于贵、要么其他方面不行。
# CPU 选择
[x] CPU
[x] 主板
套餐划算一点
# 总体配置
CPU+主板 B660M-PLUS + i7-12700F ￥3109 (opens new window)
- B660M-PLUS ￥1060
- i7-12700F ￥2130
- cpu 65 w
散热 利民 PA120 ￥169
- 光太亮了，不能直视。
内存 骇客神条 16g x 2 = ￥1099.00
DDR4 会便宜很多，主板就得换一个（也会便宜很多）
电源 酷冷 GX850 ￥594
- 后期如果要上 3090 还得是千瓦电源

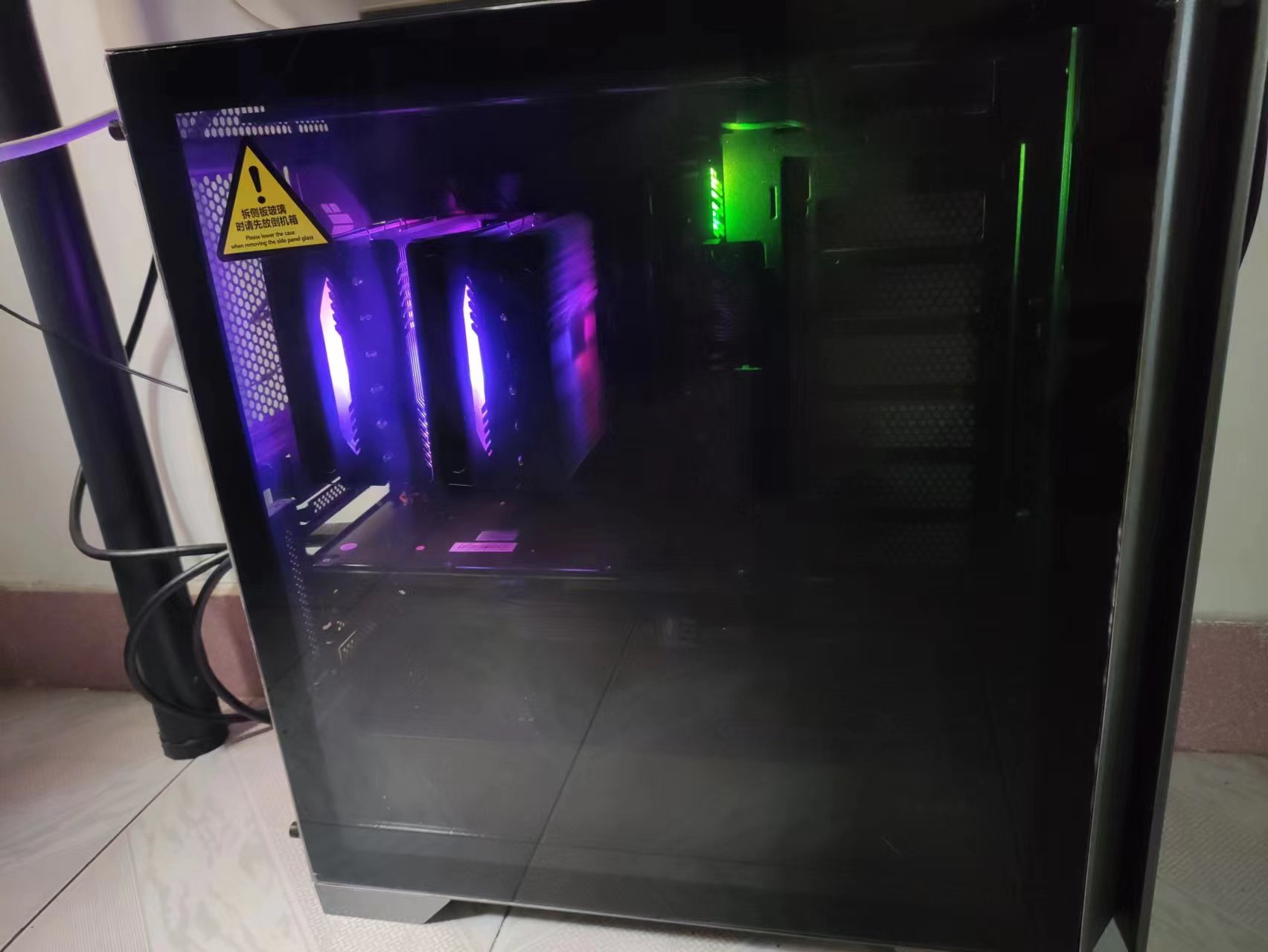

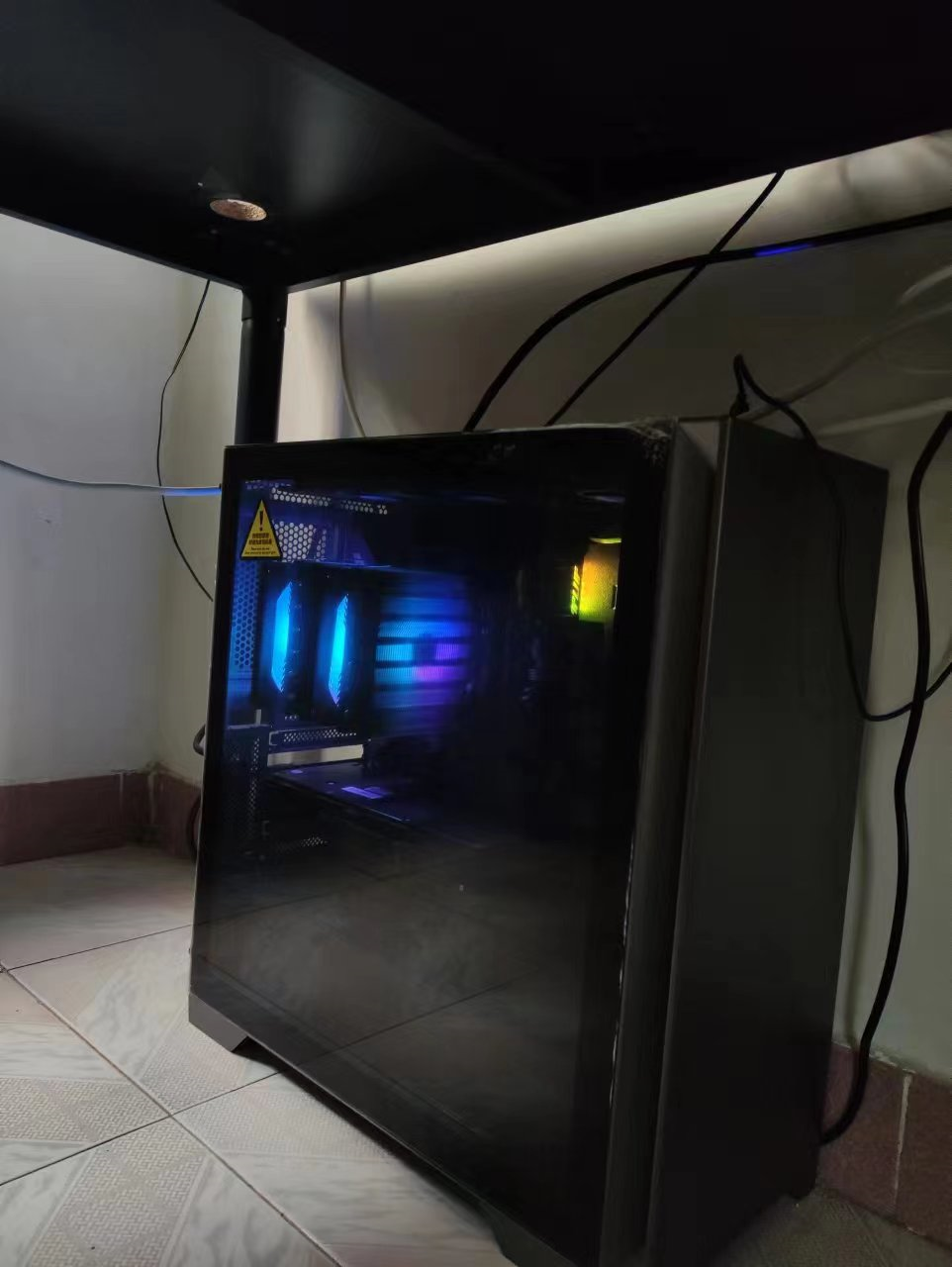

机箱 先马（SAMA）颜之神 钛灰色 ￥226
风扇 利民 12 厘米风扇 3 个，安装在尾部和顶部 ￥53
声音大
显卡 3070 卡诺基 ￥2199
- 购买日的前两天涨价了 200 块，
卡诺基在翻新卡里算口碑不错的。
- 购买日的前两天涨价了 200 块，
总价 7449
# 功率
最简单粗暴的电源计算办法，把 CPU 和 GPU 的功耗加起来再加上 100W，可以粗略算出配置的整体功耗。】 (opens new window)
电源 850w + 100w + 65w (cpu)
# 固态
- 加了个固态
- 梵想（FANXIANG）S690 SSD 固态硬盘 M.2 接口 (PCIe4.0x4) 2TB【高写入 1400TBW 长江存储晶圆 】 (opens new window) 719
- 网上说有两个情况 看人品吧
- 掉盘
- 存入 1300g 左右后 读写速度明显减慢
- 网上说有两个情况 看人品吧
- 梵想（FANXIANG）S690 SSD 固态硬盘 M.2 接口 (PCIe4.0x4) 2TB【高写入 1400TBW 长江存储晶圆 】 (opens new window) 719
- 测试方式
- AS SSD Benchmark
- CrystalDiskMark
- Windows 上快速创建一个 1G 以上的大文件 (opens new window)
- fsutil file createnew e:\b.txt 1073741824
# 空盘测试数据
# AS SSD Benchmark
AS SSD Benchmark 2.0.7316.34247
------------------------------
Name: Fanxiang S690 2TB
Firmware: SN07443
Controller: stornvme
Offset: 16384 K - OK
Size: 1863.01 GB
Date: 2023/2/13 11:18:00
------------------------------
Sequential:
------------------------------
Read: 4215.19 MB/s
Write: 3722.04 MB/s
------------------------------
4K:
------------------------------
Read: 79.78 MB/s
Write: 222.97 MB/s
------------------------------
4K-64Threads:
------------------------------
Read: 2091.47 MB/s
Write: 1283.86 MB/s
------------------------------
Access Times:
------------------------------
Read: 0.016 ms
Write: 0.060 ms
------------------------------
Score:
------------------------------
Read: 2593
Write: 1879
Total: 5783
------------------------------
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
# CrystalDiskMark
------------------------------------------------------------------------------
CrystalDiskMark 8.0.1 x64 (C) 2007-2021 hiyohiyo
Crystal Dew World: https://crystalmark.info/
------------------------------------------------------------------------------
* MB/s = 1,000,000 bytes/s [SATA/600 = 600,000,000 bytes/s]
* KB = 1000 bytes, KiB = 1024 bytes
[Read]
SEQ 1MiB (Q= 8, T= 1): 4858.861 MB/s [ 4633.8 IOPS] < 1509.94 us>
SEQ 1MiB (Q= 1, T= 1): 4486.361 MB/s [ 4278.5 IOPS] < 233.60 us>
RND 4KiB (Q= 32, T= 1): 883.414 MB/s [ 215677.2 IOPS] < 143.61 us>
RND 4KiB (Q= 1, T= 1): 79.243 MB/s [ 19346.4 IOPS] < 51.61 us>
[Write]
SEQ 1MiB (Q= 8, T= 1): 4467.455 MB/s [ 4260.5 IOPS] < 1849.33 us>
SEQ 1MiB (Q= 1, T= 1): 4459.696 MB/s [ 4253.1 IOPS] < 234.96 us>
RND 4KiB (Q= 32, T= 1): 423.689 MB/s [ 103439.7 IOPS] < 304.18 us>
RND 4KiB (Q= 1, T= 1): 257.067 MB/s [ 62760.5 IOPS] < 15.85 us>
Profile: Default
Test: 1 GiB (x5) [E: 0% (0/1863GiB)]
Mode: [Admin]
Time: Measure 5 sec / Interval 5 sec
Date: 2023/02/13 11:28:35
OS: Windows 10 Professional [10.0 Build 22621] (x64)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
# 写入 1T+ 数据后
# AS SSD Benchmark 2
AS SSD Benchmark 2.0.7316.34247
------------------------------
Name: Fanxiang S690 2TB
Firmware: SN07443
Controller: stornvme
Offset: 16384 K - OK
Size: 1863.01 GB
Date: 2023/2/14 11:04:19
------------------------------
Sequential:
------------------------------
Read: 4150.81 MB/s
Write: 4084.55 MB/s
------------------------------
4K:
------------------------------
Read: 63.06 MB/s
Write: 204.81 MB/s
------------------------------
4K-64Threads:
------------------------------
Read: 2089.18 MB/s
Write: 1283.93 MB/s
------------------------------
Access Times:
------------------------------
Read: 0.087 ms
Write: 0.071 ms
------------------------------
Score:
------------------------------
Read: 2567
Write: 1897
Total: 5776
------------------------------
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
# CrystalDiskMark 2
------------------------------------------------------------------------------
CrystalDiskMark 8.0.1 x64 (C) 2007-2021 hiyohiyo
Crystal Dew World: https://crystalmark.info/
------------------------------------------------------------------------------
* MB/s = 1,000,000 bytes/s [SATA/600 = 600,000,000 bytes/s]
* KB = 1000 bytes, KiB = 1024 bytes
[Read]
SEQ 1MiB (Q= 8, T= 1): 4828.908 MB/s [ 4605.2 IOPS] < 1728.61 us>
SEQ 1MiB (Q= 1, T= 1): 4506.055 MB/s [ 4297.3 IOPS] < 232.57 us>
RND 4KiB (Q= 32, T= 1): 808.553 MB/s [ 197400.6 IOPS] < 156.88 us>
RND 4KiB (Q= 1, T= 1): 71.322 MB/s [ 17412.6 IOPS] < 57.27 us>
[Write]
SEQ 1MiB (Q= 8, T= 1): 4393.255 MB/s [ 4189.7 IOPS] < 1906.56 us>
SEQ 1MiB (Q= 1, T= 1): 4383.751 MB/s [ 4180.7 IOPS] < 239.06 us>
RND 4KiB (Q= 32, T= 1): 405.718 MB/s [ 99052.2 IOPS] < 322.86 us>
RND 4KiB (Q= 1, T= 1): 247.658 MB/s [ 60463.4 IOPS] < 16.43 us>
Profile: Default
Test: 1 GiB (x5) [E: 66% (1226/1863GiB)]
Mode: [Admin]
Time: Measure 5 sec / Interval 5 sec
Date: 2023/02/14 11:09:57
OS: Windows 10 Professional [10.0 Build 22621] (x64)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
